OreFlow, a Grinding and Separation Circuit Read as One Balance
Published:
In a processing plant a change made in one stage, a finer grind or a different classifier cut, changes the results of every stage after it, and each area reports only its own part: grinding answers for throughput and energy per tonne, classification for the load it sends forward, flotation for recovery and concentrate grade. OreFlow links the documented relations between those stages into one open workbench, so a setting changed in one stage is followed through every stage after it.
One balance
The engine carries every stream as the mass flow of every mineral in 63 size classes plus water. It solves a Whiten crusher, a closed grinding circuit (an energy-specific population-balance ball mill with Plitt hydrocyclones, the underflow returning to the mill) and separation by flotation banks, a gravity bleed, magnetic drums or desliming, and closes every unit within 1e-9. Twelve authored cases in four circuit families (rougher for copper, zinc, nickel and other ores; gravity plus rougher for free-milling gold; magnetic for fine magnetite; deslime plus rougher for phosphate) carry eight variants each: six change exactly one declared input, two hold the classifier’s cut and let the grind follow.
An instrument, not a report

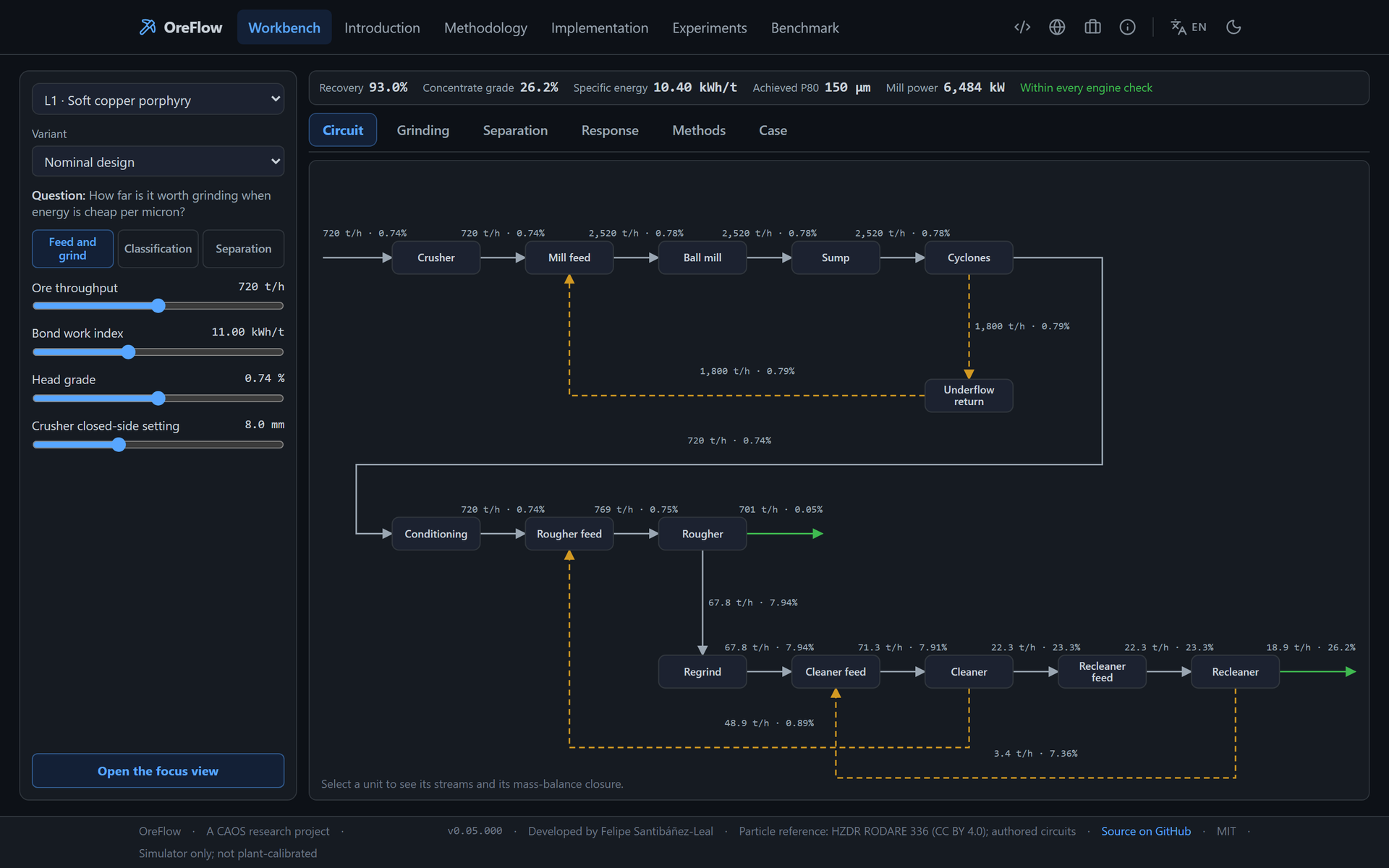

A TypeScript port of the engine runs in a Web Worker and is held to the Python engine within 1e-6 on all 96 variants, so the workbench re-solves the circuit on every control change: the flowsheet with every stream’s flow and grade, the grinding and separation curves of the current state, response sweeps over any two inputs, and a focus view for one instrument at a time, in the units every area reads: tonnes per hour of metal, megawatts, cubic metres of water, kilograms of reagent. Method records are baked offline: kinetic fits, a constrained optimizer over limits set for every area at once, uncertainty by Latin hypercube, Sobol sensitivity, and five learned surrogates scored by interpolation and by leave one case out with an autoencoder guard.
The boundary
The cases are authored inside sourced ranges, each range naming its source or labelled as authored, and are not calibrated plants. Two measured lanes, the HZDR particle dataset (RODARE 336) and 52 GeoMet locked-cycle tests (Zenodo 7051975), are kept apart from the engine and never used to calibrate it; the engine is checked against published examples labelled as such. Applying the workbench to a specific plant needs that plant’s own metallurgical tests. Version 0.06.000 acted on an audit of its own science. The mineral grindabilities had let a soft bulk mineral override the ore’s Bond work index, understating grinding energy up to 1.9 times; every nominal case now grinds at 0.83 to 0.91 of Bond’s efficiency, held by a test. Checking every case against its source found seven outside the ranges their sources give, not the three the audit named, and all seven were re-authored inside them; a claims test now holds the manuscript draft to the records. Version 0.07.000 (2026-09-30) completed the validated plan the audit had found missing: a pattern-search optimizer and a seeded uncertainty record that re-run in the browser, the classifier cut as a control, the 52 GeoMet samples run on their own assays and Bond work index beside the measured recovery, the hours of one iron-ore plant with a next-hour silica soft sensor, and mechanism ablations. Its results are reported as they came out: at the soft porphyry’s operating point every real sample is harder than the ore the circuit was sized for, the mill runs at installed power and the engine sits 20.4 points below the measured tests, where the data-driven GeoMet lane is within 5.1 to 5.5 points RMSE; on the iron-ore plant the previous hour’s assay beats every model; the learned screen cost 8.5% more engine evaluations than the search without it. It ships behind 490 Python tests, 323 frontend tests and a 924-check browser gate. Part of the Faena hub; MIT.
